| Starna®
- Cylindrical
Cells, Short path length with fill tube
|
Starna

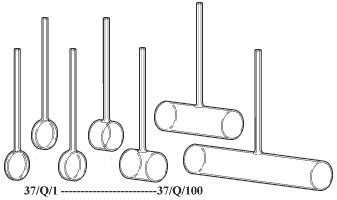

Type 37 cells have path lengths of 1, 2, 5, 10, 20, 50 and 100 mm
with an internal diameter of 19 mm and an external diameter of 22
mm. Each cell has a single fill tube which is made of the same material
as the cell body. The length of the fill tube is about 70mm with an
ID of about 1.6mm and an OD of about 4.0mm. The fill tube allows for
the cell to be fused onto another tube of the same material for inclusion
in a system or it can be heat sealed closed. Each procedure requires
expert knowledge of the techniques and materials to be used.
|
 |
| Window
material Special Optical Glass, usable range: 320 to 2500nm |
| Starna
Catalogue |
Path
Length |
Ext
Diameter |
Ext
Length |
Int
Width |
Int
Length |
Nom
Vol |
Polished |
| Number |
mm |
mm |
mm |
mm |
mm |
ml |
Windows |
| 37/PX/1 |
1 |
22 |
3.5 |
19 |
1 |
0.28 |
2 |
| 37/PX/2 |
2 |
22 |
4.5 |
19 |
2 |
0.56 |
2 |
| 37/PX/5 |
5 |
22 |
7.5 |
19 |
5 |
1.40 |
2 |
| 37/PX/10 |
10 |
22 |
12.5 |
19 |
10 |
2.80 |
2 |
| 37/PX/20 |
20 |
22 |
22.5 |
19 |
20 |
5.60 |
2 |
| 37/PX/50 |
50 |
22 |
52.5 |
19 |
50 |
14.00 |
2 |
| 37/PX/100 |
100 |
22 |
102.5 |
19 |
100 |
28.00 |
2 |
| Window
material Optical Borofloat, usable range: 320 to 2500nm |
| Starna
Catalogue |
Path
Length |
Ext
Diameter |
Ext
Length |
Int
Width |
Int
Length |
Nom
Vol |
Polished |
| Number |
mm |
mm |
mm |
mm |
mm |
ml |
Windows |
| 37/PX/1 |
1 |
22 |
3.5 |
19 |
1 |
0.28 |
2 |
| 37/PX/2 |
2 |
22 |
4.5 |
19 |
2 |
0.56 |
2 |
| 37/PX/5 |
5 |
22 |
7.5 |
19 |
5 |
1.40 |
2 |
| 37/PX/10 |
10 |
22 |
12.5 |
19 |
10 |
2.80 |
2 |
| 37/PX/20 |
20 |
22 |
22.5 |
19 |
20 |
5.60 |
2 |
| 37/PX/50 |
50 |
22 |
52.5 |
19 |
50 |
14.00 |
2 |
| 37/PX/100 |
100 |
22 |
102.5 |
19 |
100 |
28.00 |
2 |
| Window
material Spectrosil Quartz or equivalent, usable range: 170 to 2700nm. |
| Starna
Catalogue |
Path
Length |
Ext
Diameter |
Ext
Length |
Int
Width |
Int
Length |
Nom
Vol |
Polished |
| Number |
mm |
mm |
mm |
mm |
mm |
ml |
Windows |
| 37/PX/1 |
1 |
22 |
3.5 |
19 |
1 |
0.28 |
2 |
| 37/PX/2 |
2 |
22 |
4.5 |
19 |
2 |
0.56 |
2 |
| 37/PX/5 |
5 |
22 |
7.5 |
19 |
5 |
1.40 |
2 |
| 37/PX/10 |
10 |
22 |
12.5 |
19 |
10 |
2.80 |
2 |
| 37/PX/20 |
20 |
22 |
22.5 |
19 |
20 |
5.60 |
2 |
| 37/PX/50 |
50 |
22 |
52.5 |
19 |
50 |
14.00 |
2 |
| 37/PX/100 |
100 |
22 |
102.5 |
19 |
100 |
28.00 |
2 |
| Window
material Infrasil Quartz or equivalent, usable range: 220 to 3800nm |
| Starna
Catalogue |
Path
Length |
Ext
Diameter |
Ext
Length |
Int
Width |
Int
Length |
Nom
Vol |
Polished |
| Number |
mm |
mm |
mm |
mm |
mm |
ml |
Windows |
| 37/PX/1 |
1 |
22 |
3.5 |
19 |
1 |
0.28 |
2 |
| 37/PX/2 |
2 |
22 |
4.5 |
19 |
2 |
0.56 |
2 |
| 37/PX/5 |
5 |
22 |
7.5 |
19 |
5 |
1.40 |
2 |
| 37/PX/10 |
10 |
22 |
12.5 |
19 |
10 |
2.80 |
2 |
| 37/PX/20 |
20 |
22 |
22.5 |
19 |
20 |
5.60 |
2 |
| 37/PX/50 |
50 |
22 |
52.5 |
19 |
50 |
14.00 |
2 |
| 37/PX/100 |
100 |
22 |
102.5 |
19 |
100 |
28.00 |
2 |
 |
 |
| ©
